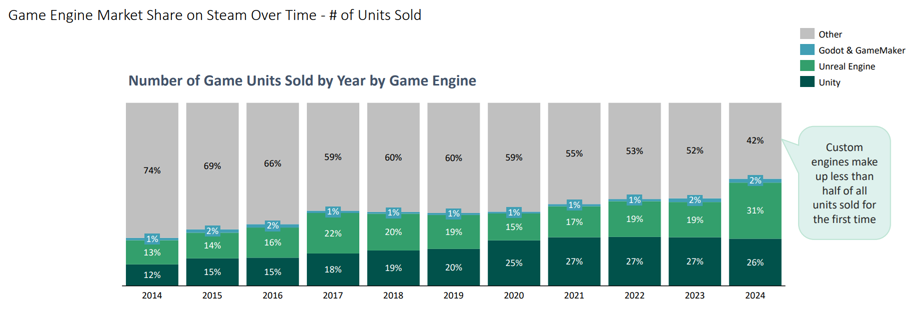

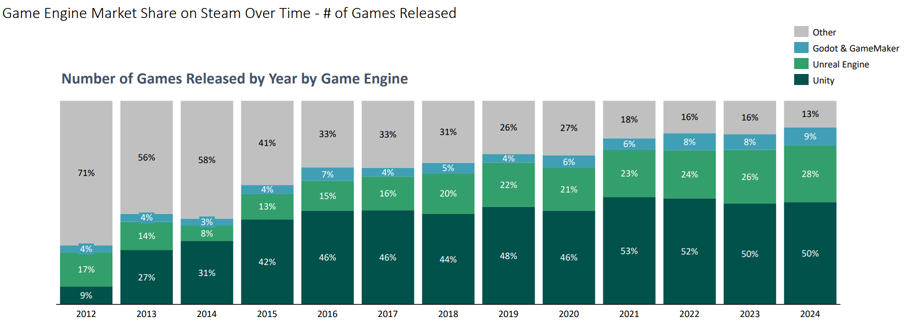

According to VGInsights, about 13% of games released on Steam in 2024 used a custom engine, down from 71% in 20121. So looking at this trend, why should anybody try to make their own game engine?

But…

Those games still accounted for 43% of units sold in 20241. Even if most were AAA games built with custom engines, the figure shows that developing your own engine can still make business sense. So this blog post is about why you should make a game engine.

However, before answering this question, we need to define what a game engine is. The term is broad enough that Claude Code has even been compared to a small game engine2:

What’s a game engine and what do we mean by custom?

A game engine is a reusable software framework that lets you create and run a computer game. It sits between the actual game code (gameplay logic) and the operating system (Windows, SteamOS, Android):

The game engine’s primary role is to keep the game loop running and handle interactions with the operating system. This game loop runs as follows:

  • Event Polling: window resizing, keyboard/mouse/controller input changes, exiting the game…
  • Gameplay: physics, calling the gameplay code
  • Rendering: generating the commands to be sent to the GPU to then present the new images on the screen

A game engine does much more than this. It also loads and manages the game’s assets: 3D models, animations, sprites, music, and sound. Yet none of these systems implements the game’s specific rules or content. We will go into more detail in the next blog posts about each part and how it is implemented in the Soup Raiders native port.

At the beginning of any game project, then, the question of whether to build a custom engine naturally arises. The goal of commercial game engines like Unreal or Unity is to sell you the game engine so that you only have to focus on making your game, whereas making a custom game engine means building that layer yourself, or at least gluing frameworks and libraries together to do the under-the-hood engineering. Here are some examples:

  • I use Unity, but I develop a lot of internal tools <- not a custom game engine.
  • I use SDL3 + Assimp to make a 3D game <- this is a custom game engine.
  • I use Unreal, but I rewrote the renderer <- not a custom game engine.
  • I use SFML to make a simple 2D networking game <- this is a custom game engine.
  • I use Godot and extend it with C++ <- not a custom game engine.
  • I handwrote the renderer from scratch in DX12 and opened a window with the Windows API <- this is a custom game engine.

It is worth looking at some games built with custom engines. I still remember Indie Game: The Movie3, in which every featured game was built with a custom engine. Many other successful games have also been built with custom engines4:

Game Studio Release Date Engine / Technology
Bastion Supergiant Games July 20, 2011 Custom C# technology, Microsoft XNA
Legend of Grimrock Almost Human April 11, 2012 Custom C++ engine, Lua
FTL: Faster Than Light Subset Games September 14, 2012 Custom C++ engine, SDL
Pixel Dungeon Watabou November 29, 2012 Java (later ported with libGDX)
Don’t Starve Klei Entertainment April 23, 2013 Custom C++ engine, Lua
Banished Shining Rock Software February 18, 2014 Custom C++ engine
Shovel Knight Yacht Club Games June 26, 2014 Custom C++ engine, DirectX/OpenGL
This War of Mine 11 bit studios November 14, 2014 Liquid Engine
Crypt of the NecroDancer Brace Yourself Games April 23, 2015 Custom C++ engine, Lua
Prison Architect Introversion Software October 6, 2015 Custom C++ engine
Darkest Dungeon Red Hook Studios January 19, 2016 Custom C++ engine, Spine
Stardew Valley ConcernedApe February 26, 2016 C#, Microsoft XNA/MonoGame
Starbound Chucklefish July 22, 2016 Custom C++ engine, Lua, SDL, OpenGL
Into the Breach Subset Games February 27, 2018 Custom C++ engine, Lua, SDL2
Factorio Wube Software August 14, 2020 Custom C++ engine, Lua

But of course, this does not mean that every successful indie game has its own custom game engine. Unity gained a large share of both the mobile and indie game markets. For example, here is a list of games made with Unity5:

Game Studio Release Date
INSIDE Playdead June 29, 2016
Hollow Knight Team Cherry February 24, 2017
Cuphead Studio MDHR September 29, 2017
Subnautica Unknown Worlds Entertainment January 23, 2018
The Forest Endnight Games April 30, 2018 (1.0)
Outer Wilds Mobius Digital May 28, 2019
Untitled Goose Game House House September 20, 2019
Risk of Rain 2 Hopoo Games August 11, 2020 (1.0)
Unpacking Witch Beam November 2, 2021
Neon White Angel Matrix June 16, 2022

But we still repeat the “make a game, not a game engine” advice to computer science students who dream of creating an MMO before they have even finished their bachelor’s degree. Yuri Karabatov makes a similar argument in Make Your Game, Not an Engine6. As Tyler Glaiel puts it in How to Make Your Own Game Engine (and Why)7:

You think you can just make something better than Unity or Unreal (or Godot or GameMaker) in general. You can’t. It’s possible to make something that is better than these for specific use cases […], but you, as an individual or a tiny team, are not going to compete with these for general purpose stuff. Especially if you have never made your own game engine before.

I really like the approach Noel Berry describes in Making Video Games in 2025 (Without an Engine)8. The engine and editor he created let him quickly build the kinds of 2D games he wants to make, drawing on 20 years of game-development experience. His game engine is written in C# and uses SDL3, with Dear ImGui powering its custom level editors. He works mostly on Linux and uses Native AOT to cross-compile for platforms that do not support VMs.

The goal of the Soup Raiders native port is not to compete with Unity or Unreal, but to build an engine specifically for this game, following the game-specific approach T. Glaiel describes here9. So now that we know what a custom game engine is, we can try to answer the question of why you would make one.

Curiosity & Learning

T. Glaiel (him again) considers learning how game engines work one of the best reasons to build your own7. I started making games by writing my own custom 2D game engine in Python with Pygame. That was in the early 2010s, and Unity was not yet where it is now. For example, here is my first game-jam entry, Trials:

Trials

Early in my game-development career, I used Python, Pygame, and Box2D. Later, a colleague from EPFL and I built a C/C++ engine with an embedded Python interpreter that could run my games faster. Finally, for Super Splash Fisticuffs (which became Splash Blast Panic), I switched to Unity 5. Apart from a small Game Boy game that I built in C with GBDK, I did not return to creating game engines until I began teaching.

But why should you learn to make a custom game engine when Unity and Unreal already exist? In fact, I would argue that making your own game engine teaches you a lot about how Unity or Unreal (or Godot) work. For students who want to enter the game industry, building an engine offers insight into proprietary in-house engines that we cannot access in the classroom. So instead of just learning the Unity way or the Unreal way, building a custom engine lets you explore the range of possible game-engine architectures.

In the computer graphics module at SAE Institute Geneva, games-programming students build a 3D scene with OpenGL. I explain why I still teach OpenGL instead of a more modern API in a separate post. Through this exercise, they learn the fundamentals of rasterisation-based rendering. For example, when I introduce shadow mapping, I show them an implementation of cascaded shadow maps.

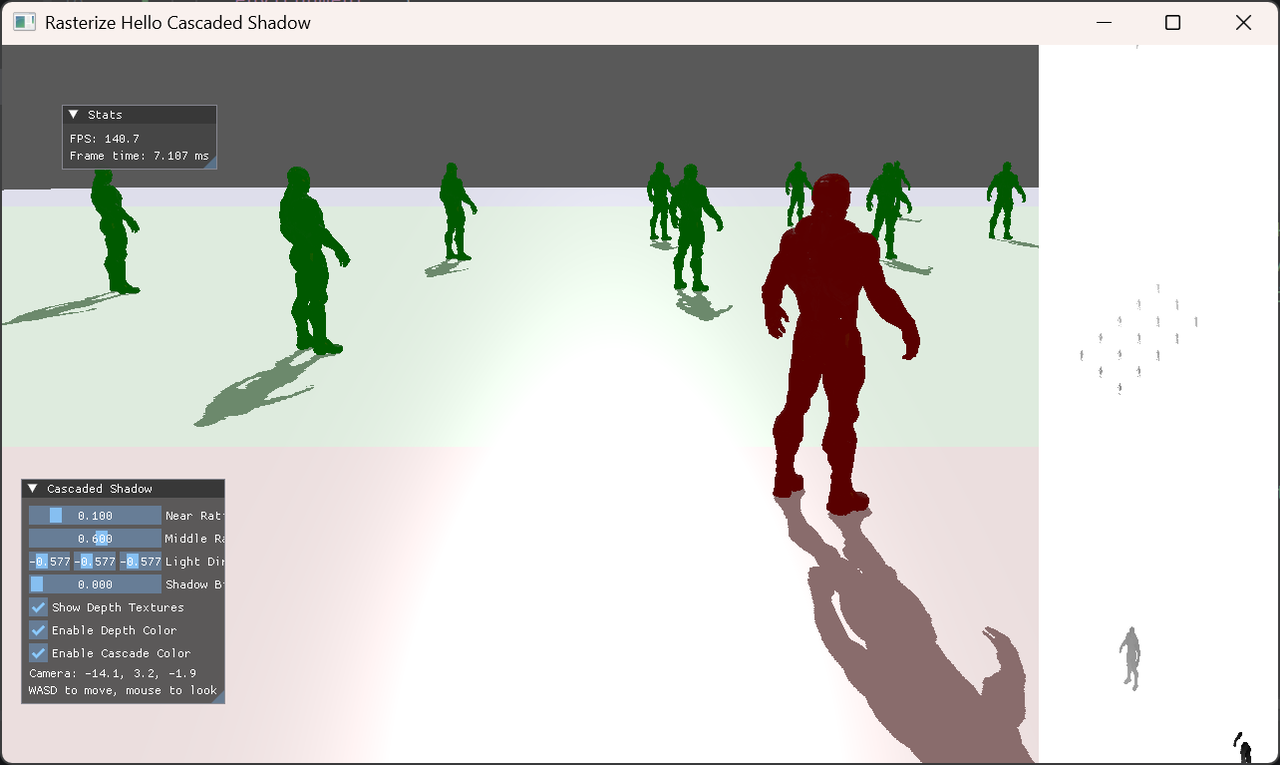

cascaded shadow map

The three shadow-map cascades appear on the right, while the scene is tinted to show which cascade each pixel uses. Funnily enough, while implementing the first version of Soup Raiders in Unity, I came across this option in the rendering settings:

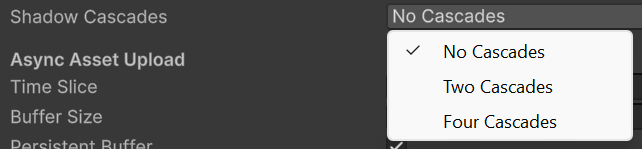

cascaded unity setting

Faced with such a setting, I have three options:

  1. I don’t know what a cascaded shadow map is, so I don’t touch anything.
  2. I don’t know what a cascaded shadow map is, so I search online (or ask an LLM), get a sense of what it is, and then change this setting and try to guess how it impacts my performance.
  3. I implemented cascaded shadow mapping in an OpenGL sample by hand, so I know exactly what it means and I choose the correct setting accordingly.

For Soup Raiders, I chose a single shadow map with no cascades and applied filtering while drawing the meshes and sprites (I did not really care about the quality of the shadows far away, as this is not an open-world game). A different game and context require different reasoning, and therefore a different decision.

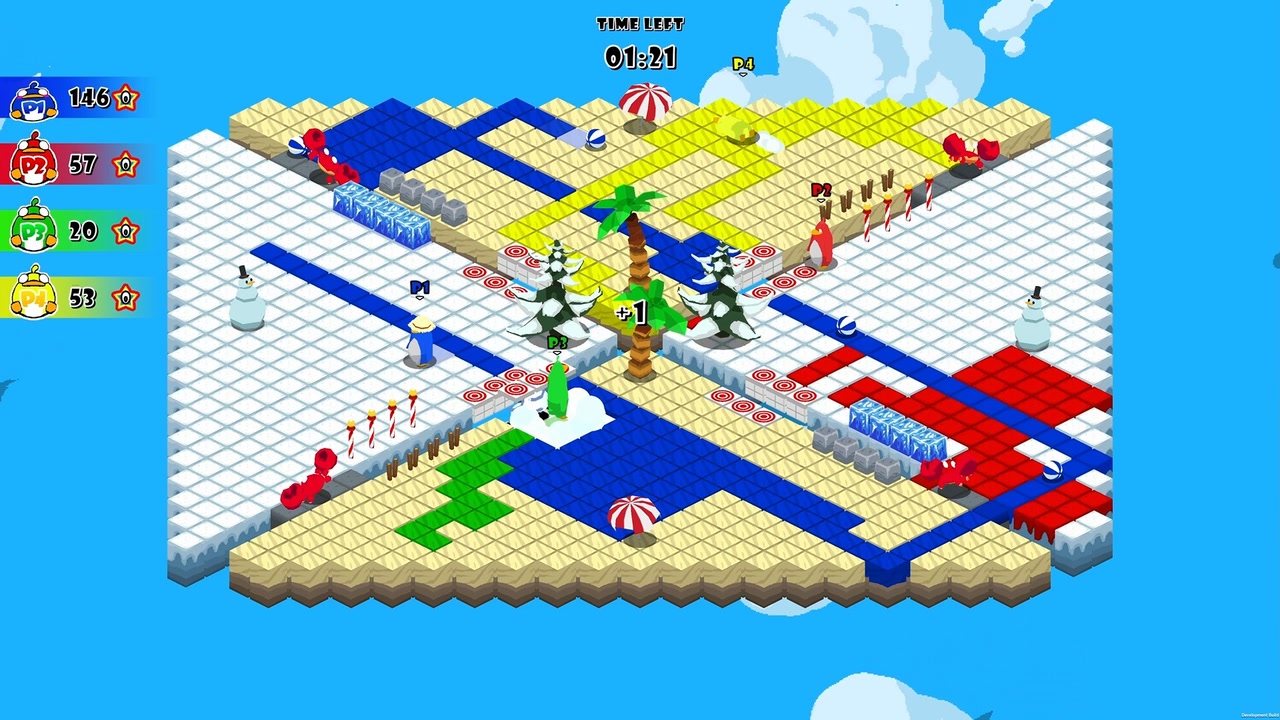

Another example comes from Beach Slap. While I was optimising the game for mobile (I have an old iPad Air 2 from 2014 for that), profiling showed me that a lot of time was spent on occlusion culling, a technique that discards draw calls for objects hidden behind other objects. It’s a very useful technique, for example in games with a lot of geometry that is often hidden. But look at my game:

beach slap

Because no objects occlude one another, the game does not benefit from occlusion culling. Having implemented the technique for my course, I understand its cost and can confidently disable it.

This experience is not unique. Mathieu Ropert, who worked on Paradox’s custom C++ engine, described a consulting job using UE510:

Independence

At the end of 2024, I went through a degoogling phase: I moved most of my files and photos from Google to Proton Drive, cancelled Xbox Game Pass, and left Spotify for Qobuz. I may eventually return to simply buying music or listening on YouTube. Big tech is everywhere, and I still want to get rid of GitHub, Microsoft Windows and Google Calendar, but their convenience is really hard to give up.

Indie developers may be independent from publishers, but they still depend on platform holders (Nintendo, Sony, Microsoft, Valve, Apple) and engine providers (Unity, Unreal, etc.). What about version control? Do you push your code to GitHub, which Microsoft owns? Do you share assets through Google Drive? And which operating system do you use? Many game developers use Windows because important tools and middleware either work only there or support it best; others use macOS.

In Real Reasons (Not) to Build Custom Game Engines in 202411, Maxim Kiselev identifies three forms of dependency created by third-party engines.

Technical Independence

On technical dependency, M. Kiselev writes11:

If you’re using a third-party engine and encounter a bug or missing feature that impacts your game, you often have no choice but to wait for the engine’s developers to fix it.

This dependency exists with both proprietary and open-source engines, although with an open-source engine you can inspect the code and fix problems yourself. In my view, a third-party engine locks developers into a particular way of implementing their game. That is acceptable for most projects but can become restrictive in unusual cases.

Unity’s transition from OpenGL and DX11 to Vulkan and DX12 illustrates this problem: its modern rendering hardware interface still had to emulate the older model, limiting its potential performance12.

Of course, Unity could not simply break RHI compatibility between versions. However, a new custom engine designed specifically around Vulkan or DX12 could outperform Unity at the RHI level by matching those APIs more closely. Sebastian Aaltonen actually made a prototype during Unity Hackweek 201913:

With a custom game engine, you have full control over your development process and tech stack.

You do not own a third-party engine; you use it under a licence that the provider may revoke if it determines that you have violated its terms of service. It has happened several times to developers using Unity:

Using a free and open-source engine such as Godot avoids this particular risk. It is released under the permissive MIT licence18. Unreal is not open source, but it does ship its full source code, which gives a degree of technical independence that Unity’s licence activation system doesn’t necessarily provide.

renderware

In the PS2 era, Criterion Games created RenderWare, a cross-platform 3D game engine for PC, PlayStation 2, Xbox and GameCube. The big deal was that each of those consoles had a different CPU architecture (PS2 was MIPS, GameCube was PowerPC, Xbox was x86 like the PC). So a game engine that let you target all those platforms was the Unreal Engine of the PS2 generation. It powered many popular games across different studios19, including:

Game Studio Release Date
Grand Theft Auto III DMA Design October 23, 2001
Tony Hawk’s Pro Skater 3 Neversoft October 28, 2001
Grand Theft Auto: Vice City Rockstar North October 29, 2002
Manhunt Rockstar North November 18, 2003
Sonic Heroes Sonic Team USA December 30, 2003
Burnout 3: Takedown Criterion Games September 7, 2004
Grand Theft Auto: San Andreas Rockstar North October 26, 2004
The Warriors Rockstar Toronto October 17, 2005
Black Criterion Games February 24, 2006
Bully Rockstar Vancouver October 17, 2006

However, after EA acquired Criterion in 2004, RenderWare was gradually withdrawn as commercial middleware and had effectively disappeared from the market by 2007 (see EA’s acquisition of Criterion20). According to EA’s William “Bing” Gordon21:

Renderware didn’t get the next-gen parts that we needed.

the machinery

In July 2021, Our Machinery announced a new game engine, “The Machinery”, available by subscription for US$50 per year for independent developers and US$450 per year for industry professionals. The paid subscriptions included every feature, technical support, and source-code access; a free version was also available without the source code. They also published a series of blog posts22 explaining the engine’s development process (the blog goes back to 2017).

However, in August 2022, licensees were abruptly told that development had ended and that they must delete all copies of The Machinery’s source code and binaries, as reported by NME23. Ryan Fleury discussed the consequences in Ships, Icebergs, Game Engines24:

What becomes of work authored for a project that used The Machinery as its engine? If a game developer is lucky, their investment in The Machinery was kept to a minimum, and their content is largely decoupled from The Machinery technology. That, though, would be a very lucky (or careful) user of The Machinery—what is more likely, for that game developer, is that a hefty majority of the authored content—levels, gameplay code, assets—is, in fact, quite coupled to The Machinery technology, and so the value of that game developer’s content has dropped dramatically close to zero.

unity

In September 2023, Unity announced a runtime fee based on game installs25, scheduled to take effect on January 1, 2024. After an immediate backlash, Unity revised the policy on September 22 with Marc Whitten’s open letter26 but did not cancel the fee entirely until September 2024, when new CEO Matt Bromberg announced its cancellation27.

The controversy had a lasting impact on the indie game-development community, prompting many developers to adopt Godot or build their own engines:

One possible consequence was visible in 2026, when Godot became the most-used engine among submissions to the Game Maker’s Toolkit Game Jam32:

Well, it finally happened! After 9 years of Unity dominance, Godot was the most used game engine for GMTK Game Jam 2026 submissions. 🤖 Godot - 47% 🎮 Unity - 34% 🛠️GameMaker - 5% 🚀 Unreal Engine - 3% ✨ Other - 11%

[image or embed]

— Game Maker's Toolkit (@gamemakerstoolkit.com) July 27, 2026 at 2:58 PM

Financial Independence

I remember a talk by Rami Ismail at Reboot Develop 2017 where he spoke about this triangle:

Motivation, money and knowledge triangle

His point was that motivation is the most important of the three, because:

  • Motivation + Knowledge + No Money = You can work part-time on your game
  • Motivation + Money + No Knowledge = You can pay people to make your game
  • Money + Knowledge + No Motivation = You do not make a game at all

In So, You Want to Make a Game Engine33, Nikita Lisitsa writes:

Why not make your own game engine? […] You might find yourself too deep into engine development instead of making an actual game, which can easily lead to a burnout.

This brings us back to the students mentioned earlier who want to build an engine for their ambitious MMO. His warning is simple33:

It is hard and time-consuming.

But imagine that we have plenty of motivation (or a well-scoped game engine) and the necessary knowledge (or the willingness to learn). If we have no money at all (or no willingness to give away a single penny when the game eventually comes out), then making a custom game engine could be financially better than using a third-party engine. T. Glaiel offers a more cautious view of whether building your own engine saves money7:

You most likely won’t (save money). Making an engine takes time, and time=money. […] Using your own engine won’t make you sell more copies of your game automatically. And while you can save time in the long run, this usually means having your engine be good enough to carry you across multiple projects, while also providing you with significant workflow improvements compared to commercial engines. It’s not easy to get this right, and you definitely won’t if its your first try at it (and extremely unlikely if you’re doing 3D instead of 2D).

For context, the following prices are an August 2026 snapshot; pricing and licensing terms may change.

  • Unity: Free with Unity Personal for up to US$200,000 in gross revenue and/or funding over the previous 12 months. From US$200,001 to US$24,999,999, Unity Pro is mandatory and costs US$2,310/year/seat or US$210/month/seat. At US$25M or more, Unity Enterprise with custom pricing is mandatory. There is no revenue share or royalty.34
  • Unreal Engine 5: Free until a game earns US$1M in lifetime gross revenue, then Epic charges a 5% royalty. Revenue earned through the Epic Games Store is royalty-free.35
  • GameMaker: Free for non-commercial use and a US$99.99 one-time fee for commercial games. Console exports require Enterprise, which costs US$79.99/month or US$799.99/year.36
  • CRYENGINE: Free upfront, with a 5% royalty after the first US$5,000/year/project. Full source code is included.37
  • Godot: Completely free under the MIT licence, with no royalties, subscriptions, or revenue limits.18

One note from M. Kiselev to finish this section (taking into account that time is money)11:

It’s easy to think that building your own engine will save time and money, but that’s rarely the case. To develop a game using an engine like Unity or Unreal Engine 5, you need to invest time learning them. While this can take a while, it’s still a much smaller time investment compared to building your own engine from scratch and learning the underlying technology needed for it.

Low-Level Control

The Handmade Manifesto38 argues that programmers should understand how computers and their technology stacks work instead of relying on layers of opaque frameworks and dependencies. One of its stated values is “We like to reinvent the wheel.” In a way, creating a custom engine means reimplementing solutions to problems that have already been solved, but tailoring them to the specific needs of our games.

Building some low-level systems yourself does not mean rebuilding everything from scratch. N. Berry8 delegates platform, input, and rendering work to SDL3 and uses FMOD for audio. N. Lisitsa also recommends using libraries like SDL, GLFW, SFML or OpenAL33.

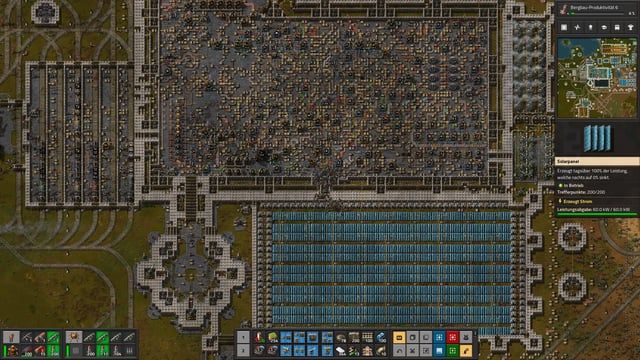

In their Reddit AMA39, the Factorio developers argued that standard engines were unsuitable for their game logic:

‘standard engines’ are so restrictive in what can be done and leave so much performance sitting there that I wouldn’t ever consider using one for something like Factorio.

A custom engine can also dramatically affect compilation times and build sizes. Developers using Unreal or Unity, particularly IL2CPP builds, may be familiar with these problems40:

The problem became so severe that I dedicated a separate computer to building Beach Slap for every platform at the end of each development day, using a single .bat script.

Dan Baker argues in A Case for Building Your Own Tech that owning a custom engine can also reduce compilation times41:

For example, our Nitrous Engine compiles very quickly. The engine compiles in less than 30 seconds. The engine code is clean and modular, so we can implement features in the engine or fix a bug in around a tenth of the time it would take in an off-the-shelf engine. Not only can we do a clean build of Ara in less than 2 minutes, but our debug version of the Ara and Nitrous is so fast that we can still run at 30 fps in full debug.

Sébastien de Graffenried’s custom engine also produces tiny builds compared with default Unity or Unreal builds42:

Jonathan Blow also demonstrates the fast compilation times achieved by the compiler for his own programming language43:

These three examples show that custom game engines can improve not only your game’s performance but also the performance of your workflow. As T. Glaiel puts it7:

it’s nice to just have your own tech, […]. It’s nice to be able to actually debug the internals of your game if something goes wrong.

However, he also warns of the risks7:

But it can also suck if you made a couple of bad design choices and everything falls apart entirely, and there’s no resources online to help you. You have full control and full responsibility, and all the pros and cons that come with that.

A custom engine can improve performance and workflow, but poor design choices can still leave you with a C++ project that takes ages to compile. Optimising its compilation times is then your responsibility.

Unique Game Mechanics

Unique or innovative game ideas sometimes require custom technology and the freedom that a custom engine provides. Although general-purpose engines can often support such ideas, working around their constraints may be difficult. For example, in Unity’s GameObject model, creating many objects with separate MonoBehaviour scripts can make the overhead of their Update() calls prohibitively expensive. A common workaround is to use a single manager MonoBehaviour to control all those entities. Unity’s DOTS architecture addresses this limitation, although it introduces a different set of trade-offs.

T. Glaiel uses Noita as an example7:

A great example of a justified use of a custom game engine is the well-known Noita. The game has a truly unique concept that likely wouldn’t have worked with any existing proprietary engine, a uniqueness captured in the name of its engine, “Falling Everything.” Yet, Noita doesn’t rely on advanced graphical effects, it’s single-player, and it was built exclusively for one platform — PC.

noita

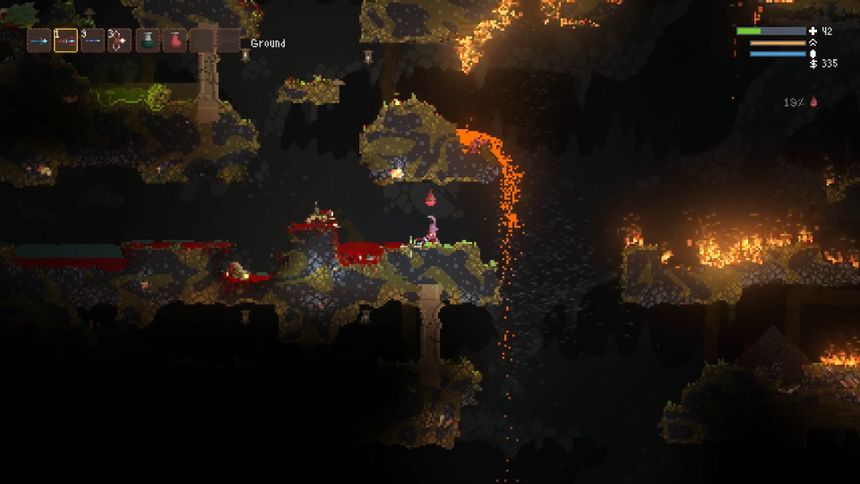

Noita is a roguelite by Nolla Games in which every pixel is simulated. In his GDC talk44, Petri Purho explains that the physics system began with experiments in QuickBASIC: each pixel checked whether there was empty space beneath it and fell accordingly. He developed the system further in Bloody Zombies, eventually adding rigid bodies. Noita then grew out of this existing C++ physics engine.

Miegakure

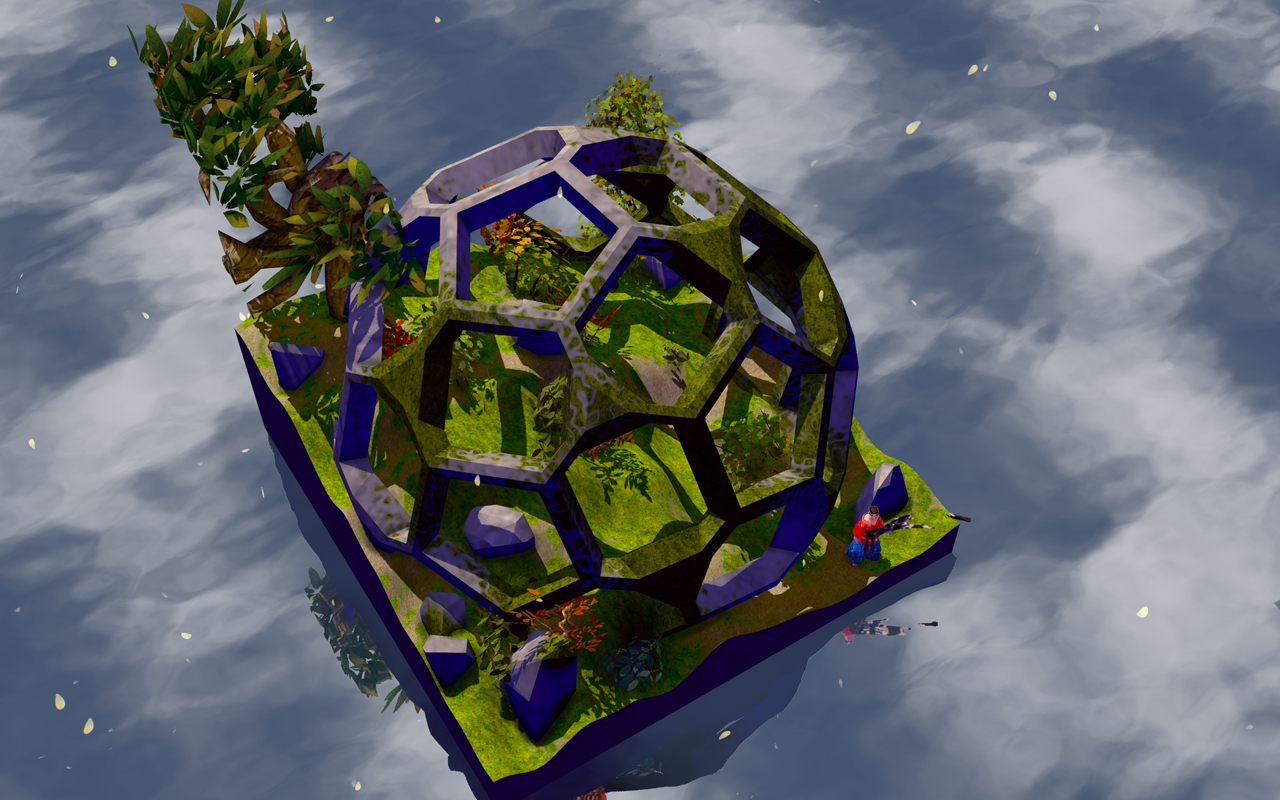

For Miegakure, an unusual 4D puzzle game, Marc ten Bosch had to reimplement many fundamental systems. As he explained to Vice45:

People have very much figured out how to build 2D and 3D games: proof of that is that game engines like Unity exist. In 4D, none of that knowledge exists, and it is more difficult to come up with because you can’t fully visualize it and the math is more complicated. So anything a game developer would take for granted in a 3D game—like collision detection, lighting, sound, modeling props—is a new, difficult problem that has to be figured out. It takes a long time to solve these issues, but it is also extremely fun for me!

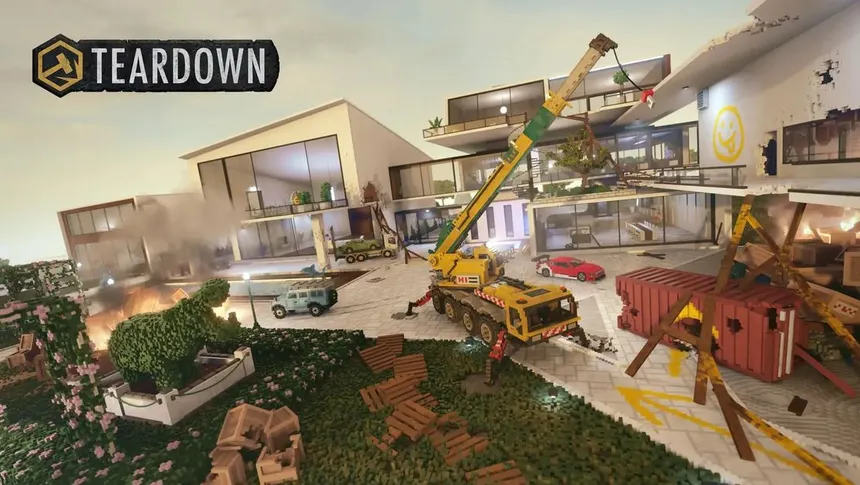

teardown

Similarly, Dennis Gustafsson explained46 that Teardown grew out of his experiments with voxel and destruction technology:

The engine and tool pipeline are created from scratch in C++ for this game specifically, […], but since the game relies on novel technology I don’t think it would have been possible using an off-the-shelf engine.

Specialisation

T. Glaiel lists “I can do better” (than other game engines) as a bad reason for making a game engine. In his own words7:

You think you can just make something better than Unity or Unreal (or Godot or GameMaker) in general. You can’t. It’s possible to make something that is better than these for specific use cases […], but you, as an individual or a tiny team, are not going to compete with these for general purpose stuff.

For a custom engine to make sense, it must be specialised for the game, its artistic direction, or the platform’s technical constraints.

Because N. Berry’s artist uses Aseprite, he added direct support for its file format to the engine. He also builds level editors tailored to each game and the team’s workflow8. He can do that because he does not need most of the features of a general-purpose game engine.

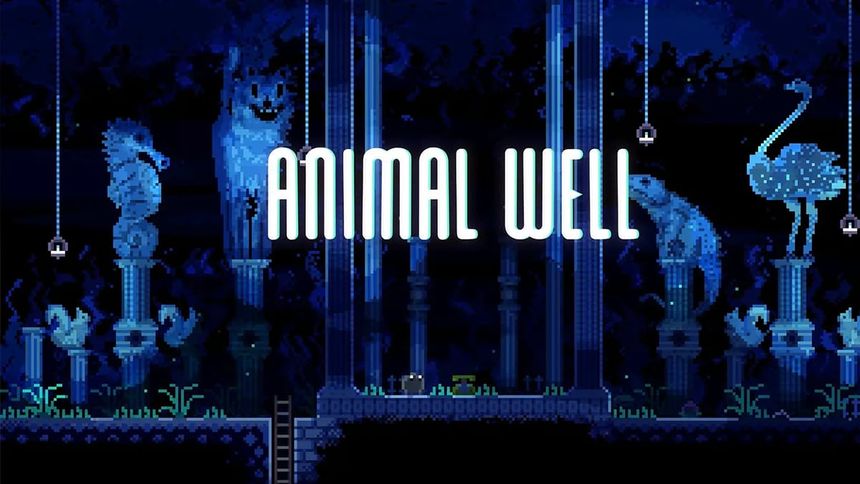

animal well

According to Sam Machkovech’s article on Animal Well47, Billy Basso built a custom engine partly because his experience with bloated, sluggish off-the-shelf engines in mobile development had left a “sour taste.” His engine allowed him to combine a rim-lighting shader, which highlights silhouettes in otherwise dark scenes, with a full-screen Navier–Stokes simulation for smoke and water. B. Basso recommends an engine-first approach to game development:

[…] That opens up a lot of unique creative avenues. Once I get a cool system working, then I can play around with it and see what it allows for.

N. Lisitsa makes the point that a custom game engine does not necessarily need complex material graphs, global illumination, advanced 3D physics, multiplayer infrastructure or industrial-scale editor tooling33. For T. Glaiel, specialisation is almost a requirement for a custom engine. He adds7:

[…] you can make your asset pipeline / level editor / whatever way smoother to use when considering your specific use cases instead of needing it to be general purpose.

This is one of the central ideas in Andreas Fredriksson’s Context Is Everything48 talk at Handmade Seattle 2021: once you understand your specific context, a custom engine’s low-level control lets you optimise as deeply as necessary.

Specialisation can also provide long-term benefits: a custom engine may support the next game or even an entire series. This was the case for the RED Engine of CD Projekt Red49:

  • (2007) Aurora Engine: CDPR licensed and heavily modified BioWare’s engine to create The Witcher.
  • (2011) REDengine 1: CDPR introduced its own proprietary engine with The Witcher 2.
  • (2012) REDengine 2: The engine evolved to support consoles and multiplatform development.
  • (2015) REDengine 3: REDengine was redesigned for the large open world of The Witcher 3.
  • (2020) REDengine 4: The engine evolved again for the dense urban world of Cyberpunk 2077.
  • (2023) REDengine 4 (cont.): Phantom Liberty became the final major release built with REDengine.

CD Projekt Red has since switched to Unreal Engine for The Witcher IV, but the evolution of REDengine still shows how a custom engine’s foundations can support several generations of games.

Multiplatform

When releasing a game on multiple platforms, Unity feels like magic. Even if the result is not perfectly optimised, porting a Unity game to a console can take far less time than implementing the port by hand in a custom engine, especially when the platform is unfamiliar. N. Lisitsa describes the cost of multiplatform support in a custom engine33:

Supporting multiple platforms adds more pain, since different platforms have different executable file formats, dynamic library formats, etc. You’ll have to compile several different versions of your game, one for each platform.

Compare that with the “time to triangle” (the time required to render an engine’s first triangle on a console) that Mark Cerny discussed for several PlayStation generations at Gamelab 201350:

Platform “Time to triangle”
PlayStation 1–2 months
PlayStation 2 3–6 months
PlayStation 3 6–12 months
PlayStation 4 1–2 months

Custom engines have a clearer advantage on niche and retro platforms. At the time of writing, Unity 6.4 officially supports these consoles51:

  • PlayStation 4 (including PlayStation VR)
  • PlayStation 5 (including PlayStation VR2)
  • Xbox One
  • Xbox Series X
  • Xbox Series S
  • Nintendo Switch
  • Nintendo Switch 2

These are all recent console generations. Targeting older or more unusual hardware often requires a custom engine or specialised tooling. On the Playdate, you are required to program in C or Lua with its SDK. The Arduboy similarly uses C++ through the Arduino ecosystem, under severe hardware constraints.

For GBJam 2016, I made a Game Boy game in C using GBDK, a process I described in a separate post. GB Studio did not exist at the time, so I had to endure the painful process of programming for a system without a debugger (the screen would just be blank at boot when there was a problem).

Similarly, Elias Daler is developing a PS1 game with his own custom engine52:

Commercial engines must follow current technology and console generations, whereas custom engines can continue targeting whichever platforms their developers choose.

Modding

On file management, T. Glaiel writes7:

You might want to be able to build mod support or dynamic loading/unloading or whatever off of this, as long as you have the basics here and only ever load files through the file manager, you can easily add whatever other functionality you want into this later.

But what can we load and allow the players to change?

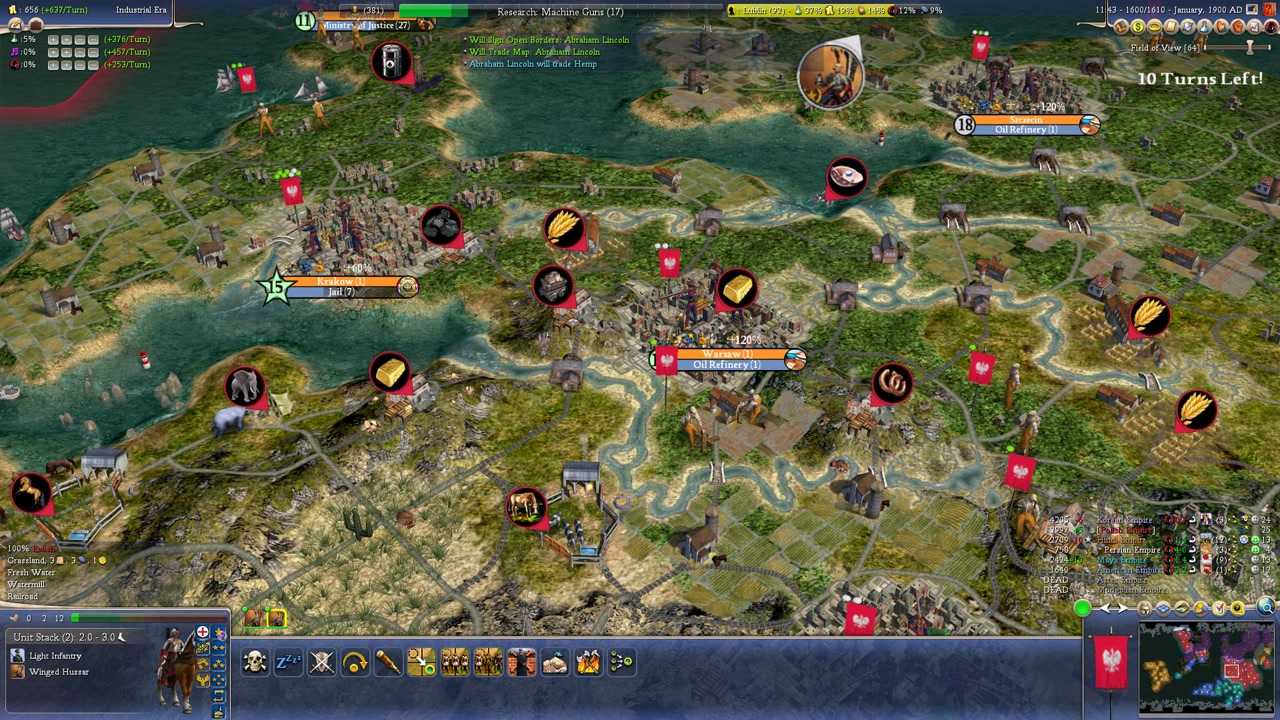

civ4 mods

One of the defining games of my teenage years was Civilization IV, whose unusually moddable, data-driven architecture was discussed in the August 2005 issue of Game Developer53. It featured four tiers of moddability:

  • In-game WorldBuilder: An in-game map editor for customising terrain and placing units, cities, buildings, and resources.
  • XML/data modification: All game variables, text, asset paths, and rules were stored in standard XML files.
  • Python scripting: High-level game functionality was exposed to Python, allowing scripts to generate maps, modify the interface, trigger game events, and override AI.
  • C++ GameCore DLL SDK: Users could modify, replace, or extend the low-level C++ code that ran the game.

While researching this post, I discovered Realism Invictus54, a total-overhaul mod that has remained in development for more than 20 years. It adds over 130 technologies, entire families of distinct units, more than 160 leaders, and 21 additional civics, making it feel almost like Civilization IV 2.0. All this is possible because the game developers spent a lot of time making the game (and thus the engine) moddable.

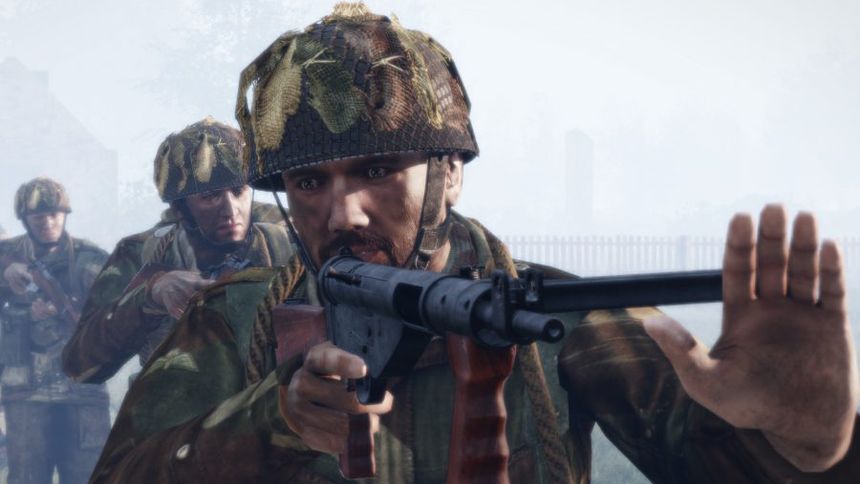

arma 3

Bohemia Interactive’s ARMA III offers another example. In his talk THE PANDORA’S BOX OF MODDING IN ‘ARMA’ GAMES55, Karel Mořický describes three relationships between games and mods:

  • Standard game: Players cannot modify it, so the code’s internal mess remains hidden.
  • Improvised modding: Determined players modify the game without official support, often producing messy or unstable results.
  • Moddable game: The developer provides an API so mods can add content. At this point, the product becomes a platform.

I find it fascinating that ARMA supports multiple simultaneous mods, dependencies between mods, patch mods that override existing content, and multiplayer-specific server and client mods. At the time of the talk, the community had created 70,174 mods. The game exposes its editors directly through the main menu, and modders can use a development branch alongside the main release to prepare their mods for upcoming updates.

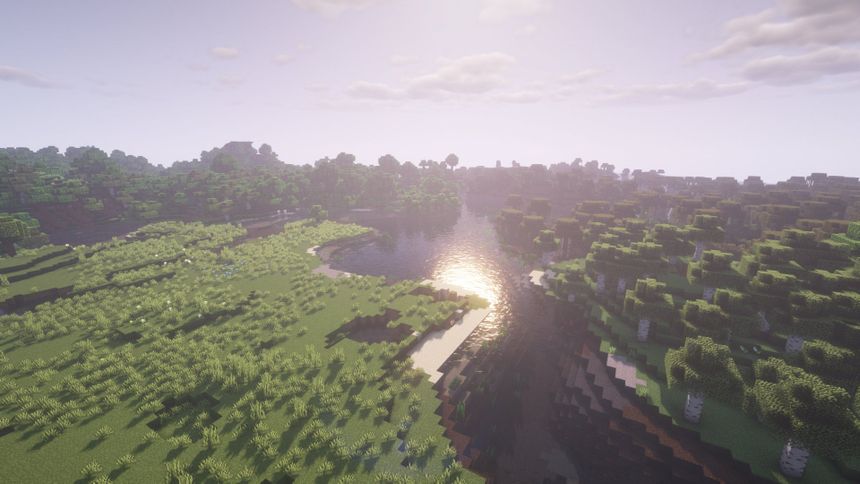

minecraft mods

By contrast, the Minecraft: Java Edition modding ecosystem grew largely without an official engine-level API from Mojang. Early modders simply decompiled the game and replaced or modified classes directly inside minecraft.jar. Over time, different communities built shared modding layers. Today, the main ecosystems include Fabric, Forge, NeoForge, and Quilt, alongside server platforms such as Paper and its derivatives. Updates to Minecraft: Java Edition have often been painful for modders. Version 1.13 introduced substantial internal changes, making large mods difficult to port and forcing even Forge itself to undergo a major redesign56.

Interestingly, Minecraft: Bedrock Edition experimented with a JavaScript API57 in 2018. Its modern Script API58 still uses JavaScript or TypeScript, while Molang59 serves as a separate expression language embedded in add-on JSON files.

factorio

Factorio mods60 can run Lua code both during startup and while a map is being played. Because Factorio supports deterministic multiplayer, its developers found that even iterating over a Lua hash table could make a mod nondeterministic and cause desynchronisation61. Mods can also crash. Initially, Factorio presented mod failures in the same way as game crashes, but the developers later added clearer error reporting62 that identified the responsible mod. One of Factorio 2.0’s most significant modding changes was to treat the game itself as a mod63, shipping first-party components through the same dependency infrastructure.

For Beach Slap, we designed the level editor as an in-game tool from the start so that we could share it with players. Levels are stored as JSON files, making them easy to save locally, upload, and download. I do not, however, plan to support modding in the native version of Soup Raiders.

Conclusion

This post grew far beyond my original idea, but I wanted to set out my thoughts on building a custom engine before delving into the technology itself. Building an engine takes time, but it gives us control over how the game loads and updates, removes engine-licence fees, and teaches us about asset compilation, rendering, and optimisation. We can even expose parts of the engine to players, allowing them to improve the game or create mods (and potentially entirely new games) with our technology. After Unity’s runtime-fee announcement, technological independence became an even more important concern for game developers.

The rest of this series will explore the implementation of the Soup Raiders native port and how it targets 60 Hz on Nintendo Switch with loading times below three seconds. One final principle comes from Ted Bendixson’s Better Software Conference 2025 talk64: build an actual game with your custom engine, not merely an impressive technical demo. T. Glaiel expresses the same principle more forcefully7:

Make a game at the same time as you’re making the engine. This is an unbreakable rule. The only unbreakable rule. Get the basics in as fast as you possibly can and then immediately start making a game on top of it. An engine is nothing without a game.

I will leave you with one final thought on building a game engine with the help of LLMs65:

Further Reading

These are not cited above, but they cover the same ground and are worth your time:

References

  1. Video Game Insights, The Big Game Engines Report of 2025. https://vginsights.com/assets/reports/The_Big_Game_Engines_Report_of_2025.pdf ↩ ↩2

  2. Thariq (@trq212), post on X, 21 January 2026. https://x.com/trq212/status/2014051501786931427 ↩

  3. James Swirsky and Lisanne Pajot, Indie Game: The Movie, 2012. http://www.indiegamethemovie.com/about/ ↩

  4. Release dates and engine attributions compiled from developer statements, press coverage and store pages for each title. ↩

  5. Release dates compiled from store pages; engine attribution from developer statements and Unity case studies. ↩

  6. Yuri Karabatov, Make your game, not an engine, NorikiTech, 22 May 2025. https://norikitech.com/posts/make-your-game/ ↩

  7. Tyler Glaiel, How to make your own game engine (and why), Geek Culture (Medium), 11 November 2021. https://medium.com/geekculture/how-to-make-your-own-game-engine-and-why-ddf0acbc5f3 ↩ ↩2 ↩3 ↩4 ↩5 ↩6 ↩7 ↩8 ↩9 ↩10

  8. Noel Berry, Making Video Games in 2025 (without an engine), 18 May 2025. https://noelberry.ca/posts/making_games_in_2025/ ↩ ↩2 ↩3

  9. Tyler Glaiel (@TylerGlaiel), post on X, 27 June 2024. https://x.com/TylerGlaiel/status/1806476966973116539 ↩

  10. Mathieu Ropert (@MatRopert), post on X, 30 April 2026. https://x.com/MatRopert/status/2049803204385226827 ↩

  11. Maxim Kiselev, Real reasons (not) to build custom game engines in 2024, Game Developer, 19 September 2024. https://www.gamedeveloper.com/programming/real-reasons-not-to-build-custom-game-engines-in-2024 ↩ ↩2 ↩3

  12. Sebastian Aaltonen (@SebAaltonen), post on X, 19 January 2025. https://x.com/SebAaltonen/status/1880889196363251790 ↩

  13. Sebastian Aaltonen (@SebAaltonen), post on X, 4 June 2022. https://x.com/SebAaltonen/status/1532988130290241536 ↩

  14. Improbable urges Unity to unsuspend their game engine license or clarify terms, TechCrunch, 11 January 2019. https://techcrunch.com/2019/01/11/improbable-urges-unity-to-unsuspend-their-game-engine-license-or-clarify-terms/ ↩

  15. Was gonna launch my game’s demo tomorrow, but am…, r/unity, Reddit, July 2026. https://www.reddit.com/r/unity/comments/1ur9j7m/was_gonna_launch_my_games_demo_tomorrow_but_am/ ↩

  16. Mike Thorn, My personal license has been revoked, Unity Discussions, March 2024. https://discussions.unity.com/t/my-personal-license-has-been-revoked/942826 ↩

  17. License revoked, editor closed, work lost, Unity Discussions, August 2023. https://discussions.unity.com/t/license-revoked-editor-closed-work-lost/926284 ↩

  18. License, Godot Engine. https://godotengine.org/license/ ↩ ↩2

  19. RenderWare, Wikipedia. https://en.wikipedia.org/wiki/RenderWare ↩

  20. EA assimilates Criterion, GameSpot. https://www.gamespot.com/articles/ea-assimilates-criterion/ ↩

  21. Bing there, done that: EA’s CCO talks everything, Game Developer. https://www.gamedeveloper.com/business/bing-there-done-that-ea-s-cco-talks-everything ↩

  22. Our Machinery, The Machinery blog archive, mirrored by ruby0x1. https://ruby0x1.github.io/machinery_blog_archive/ ↩

  23. The Machinery game engine cancelled as developers told to delete all source code, NME, August 2022. https://www.nme.com/news/gaming-news/the-machinery-game-engine-cancelled-as-developers-told-to-delete-all-source-code-3283633 ↩

  24. Ryan Fleury, Ships, Icebergs, Game Engines, Digital Grove, 5 August 2022. https://www.dgtlgrove.com/p/ships-icebergs-game-engines ↩

  25. Unity, Unity plan pricing and packaging updates, Unity Discussions, 12 September 2023. https://discussions.unity.com/t/unity-plan-pricing-and-packaging-updates/927079 ↩

  26. Marc Whitten, An open letter to our community, Unity, 22 September 2023. https://unity.com/blog/an-open-letter-to-our-community ↩

  27. Matt Bromberg, Unity is canceling the Runtime Fee, Unity, September 2024. https://unity.com/blog/unity-is-canceling-the-runtime-fee ↩

  28. Elega Corporation, Kalling Kingdom engine port and YouTube hiatus. https://www.elegacorp.com/blog/kalling-kingdom-engine-port-and-youtube-hiatus.html ↩

  29. Godot private asset library — transitioning from Unity to Godot, Spielmannspiel. https://spielmannspiel.com/blog/transitioning_from_unity_to_godot ↩

  30. From Unity to Godot: my journey with “No Escape?!”, Godot Forum. https://forum.godotengine.org/t/from-unity-to-godot-my-journey-with-my-no-escape-game-and-open-source-projects/126568 ↩

  31. Scrapyard Jam, itch.io. https://itch.io/jam/scrapyard-jam ↩

  32. Game Maker’s Toolkit (@gamemakerstoolkit.com), post on Bluesky, 27 July 2026. https://bsky.app/profile/gamemakerstoolkit.com/post/3mrmx5mi3mk24 ↩

  33. Nikita Lisitsa (lisyarus), So, you want to make a game engine, 15 September 2023. https://lisyarus.github.io/blog/posts/so-you-want-to-make-a-game-engine.html ↩ ↩2 ↩3 ↩4 ↩5

  34. Unity, Unity pricing updates. https://unity.com/products/pricing-updates ↩

  35. Epic Games, Unreal Engine licensing options. https://www.unrealengine.com/license ↩

  36. GameMaker, November 2023 pricing/terms change FAQ. https://gamemaker.io/en/help/articles/november-2023-pricing-terms-change-faq ↩

  37. CRYENGINE, Licensing. https://www.cryengine.com/support/view/licensing ↩

  38. Handmade Network, The Handmade Manifesto. https://handmade.network/manifesto ↩

  39. Wube Software, Developer technical-oriented AMA, r/factorio, Reddit, September 2020. https://www.reddit.com/r/factorio/comments/in5d3i/developer_technicaloriented_ama/ ↩

  40. Ashkan Saeidi Mazdeh (@Ashkan_GC), post on X, 5 February 2026. https://x.com/Ashkan_GC/status/2019446029175693724 ↩

  41. Dan Baker, A case for building your own tech, GamesIndustry.biz. https://www.gamesindustry.biz/a-case-for-building-your-own-tech-opinion ↩

  42. Sébastien de Graffenried (@seb_degraff), post on X, 12 February 2025. https://x.com/seb_degraff/status/1889649086560600088 ↩

  43. Jonathan Blow (@Jonathan_Blow), post on X, 26 January 2021. https://x.com/Jonathan_Blow/status/1353939518588502018 ↩

  44. Petri Purho, Exploring the Tech and Design of ‘Noita’, Independent Games Summit, GDC 2019. https://www.gdcvault.com/play/1025695/Exploring-the-Tech-and-Design ↩

  45. Patrick Klepek, What Happened to ‘Miegakure,’ the Game That Promised the 4th Dimension?, Vice (Waypoint), 24 July 2018. https://www.vice.com/en/article/what-happened-to-miegakure-the-game-that-promised-the-4th-dimension/ ↩

  46. Joel Couture, Combining bombastic heists with a fully destructible voxel world in Teardown, Game Developer, 21 July 2021. https://www.gamedeveloper.com/design/combining-bombastic-heists-with-a-fully-destructible-voxel-world-in-i-teardown-i- ↩

  47. Sam Machkovech, Why Animal Well’s home-brewed engine was key to its success, Game Developer, 13 November 2024. https://www.gamedeveloper.com/design/why-animal-well-s-home-brewed-engine-was-key-to-its-success ↩

  48. Andreas Fredriksson, Context is Everything, Handmade Seattle 2021. https://vimeo.com/644068002 ↩

  49. REDengine, The Witcher Games Wiki. https://witcher-games.fandom.com/wiki/REDengine ↩

  50. Mark Cerny, The Road to PS4, Gamelab 2013. https://www.youtube.com/watch?v=xHXrBnipHyA ↩

  51. Unity, System requirements for Unity 6.4, Unity Manual. https://docs.unity3d.com/6000.4/Documentation/Manual/system-requirements.html ↩

  52. Elias Daler (@EliasDaler), post on X, 24 July 2025. https://x.com/EliasDaler/status/1948300981130727607 ↩

  53. Game Developer, August 2005 issue. https://media.gdcvault.com/GD_Mag_Archives/GDM_August_2005.pdf ↩

  54. Realism Invictus 3.8 released — 20 year anniversary of Realism Invictus, ModDB. https://www.moddb.com/mods/realism-invictus/news/realism-invictus-38-released-20-year-anniversary-of-realism-invictus ↩

  55. Karel Mořický, The Pandora’s Box of Modding in ‘Arma’ Games, Bohemia Interactive, GDC 2021. https://gdcvault.com/play/1027043/The-Pandora-s-Box-of ↩

  56. Minecraft Forge, Porting from 1.12 to 1.13/1.14, Forge Documentation. https://docs.minecraftforge.net/en/1.14.x/legacy/porting1214/ ↩

  57. Mojang, Scripting API now in public beta, Minecraft.net, 2018. https://www.minecraft.net/en-us/article/scripting-api-now-public-beta ↩

  58. Microsoft, Introduction to scripting, Minecraft Creator Documentation. https://learn.microsoft.com/en-us/minecraft/creator/documents/scripting/introduction?view=minecraft-bedrock-stable ↩

  59. Microsoft, Introduction to Molang, Minecraft Creator Documentation. https://learn.microsoft.com/en-us/minecraft/creator/documents/molang/introduction?view=minecraft-bedrock-stable ↩

  60. Wube Software, Data lifecycle, Factorio Lua API documentation. https://lua-api.factorio.com/latest/auxiliary/data-lifecycle.html ↩

  61. Kovarex, Friday Facts #70 - The smooth FPS, Factorio, 23 January 2015, “Deterministic scripting” section. https://www.factorio.com/blog/post/fff-70 ↩

  62. Wube Software, Friday Facts #178 - Minimal mode and Mini-tutorials, Factorio, 17 February 2017. https://www.factorio.com/blog/post/fff-178 ↩

  63. Wube Software, Friday Facts #391 - 2023 recap, Factorio, 29 December 2023. https://www.factorio.com/blog/post/fff-391 ↩

  64. Ted Bendixson, Most of your projects are stupid. Please make some actual games., Better Software Conference 2025. https://www.youtube.com/watch?v=Ca53JTohdN4 ↩

  65. Sebastian Aaltonen (@SebAaltonen), post on X, 16 March 2026. https://x.com/SebAaltonen/status/2033460617282031835 ↩
